NTA-4

Automatic Top Press Fly Ash Brick Machine (N/A) Active 5 Images 0 Docs

Quick Actions

Enquire Now View Details

Next Product Previous Product

5 Images

0 Documents

Overview Specifications Documents Enquiry

Product overview

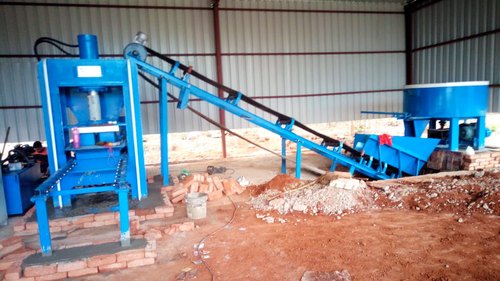

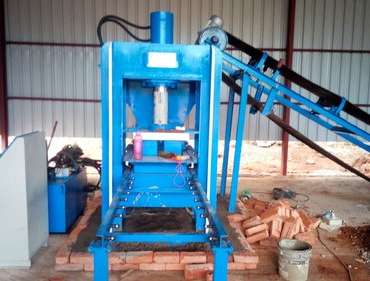

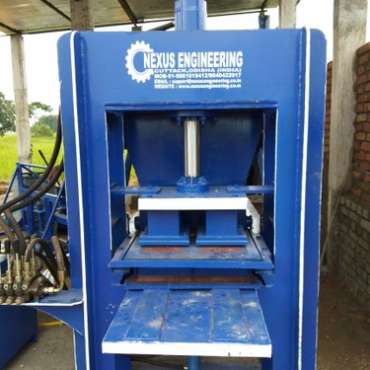

1-Nexus Automatic Fly Ash Bricks Machine (Model No : NTA-4)
2-Type – Auto
3-Category- Top Press
4-Bricks Per stroke – 4
5-Production Per Hour – 720
6-Labour Req – 6 Nos
7-Power Req (H.P) – 19.5 H.P.
8-Land Requirement (Sq Ft) – 5000 Sq Ft

Additional Information:

Production Capacity: 720 Bricks Per Hour
Delivery Time: 3 TO 5 WEEKS
Packaging Details: POLY PACKAGING

Technical details

Key specification highlights for quick comparison and decision-making.

Color	Gray
Model Name/Number	NTA-4
Shape	N.A
Usage/Application	Side Walls
Type	AUTOMATIC
Features	720 BRICKS PER HOUR
Coverage Area	5000 SQ FT
Density Gram Per Centimeter Cube	N.A
Density Kg Per Cube M	N.A
Size	9 In. X 4 In. X 3 In.
Brand	A Garde
Design Of Bricks	SOLID
Grade	A
Moisture	N.A
Strength	N.A
Style	N.A
Water Absorption	N.A

Material	Fly Ash
Country of Origin	Made in India
Brick Raw Material	Concrete
Automation Grade	Automatic
Brick Type	Solid
Capacity	720 Bricks Per Hour
Method	Hydraulic Pressure
Tolerance	0.5 mm
Place Of Origin	CUTTACK
Warranty	1 Year
Brick Size	8″,9″,10″
Power	N.A
Machine Weight	N.A
Maximum High Pressure	N.A
Oil Tank Capacity	N.A
Voltage	N.A

Documents

Brochures & files

Download available documents, manuals, or brochures shared for this product.

No documents uploaded.

Enquiry

Tell us your capacity requirement and location — we will suggest the right configuration and share a quote.
